P4S800D-E Deluxe

[Dark26]

je vais bientôt avoir entre les mains cette bestiole , et vu que je suis plutôt , je me demande si quelqu'un a cette carte, si il y a des trucs que je dois savoir, , enfin voila quoi......

elle a l'air vraiment pas mal sur le papier...

[grandEST]

au minimum du niveau d'un 865

approche perf du 975

que du tout bon

rare en france

pas de probleme avec la 9700 pro elle :)

[KzR]

ici

ou là

Drivers

Conclusion

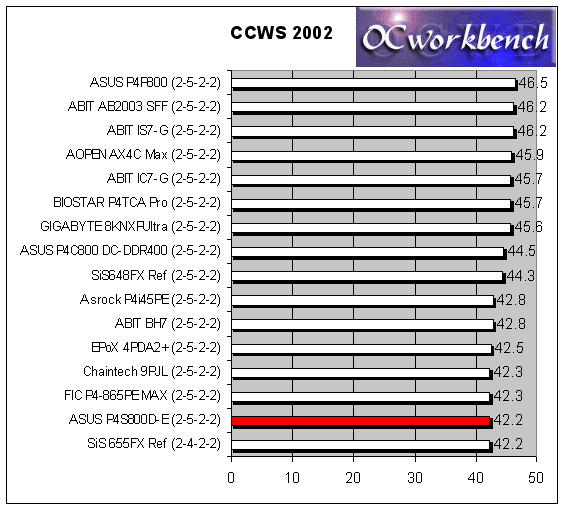

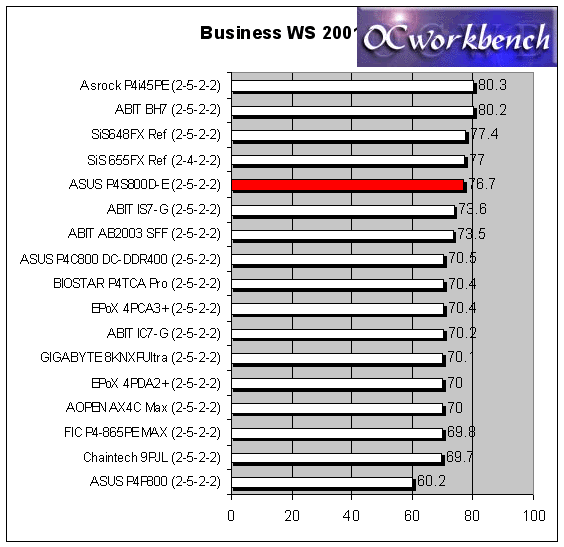

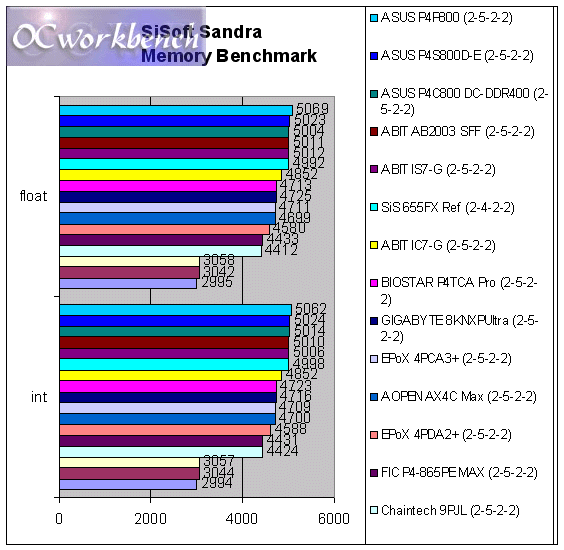

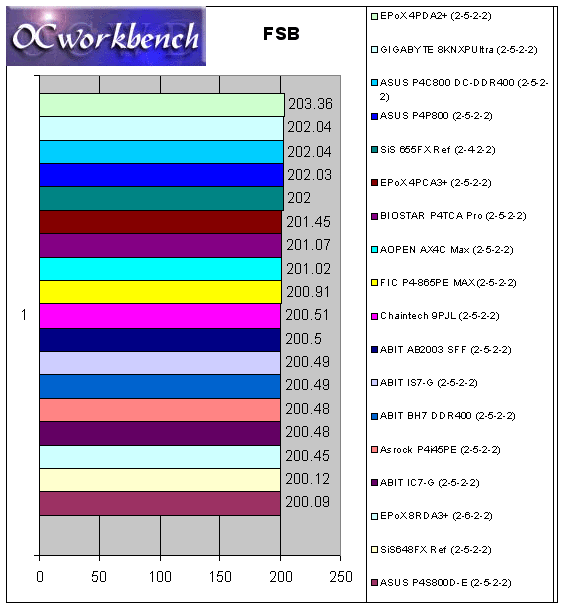

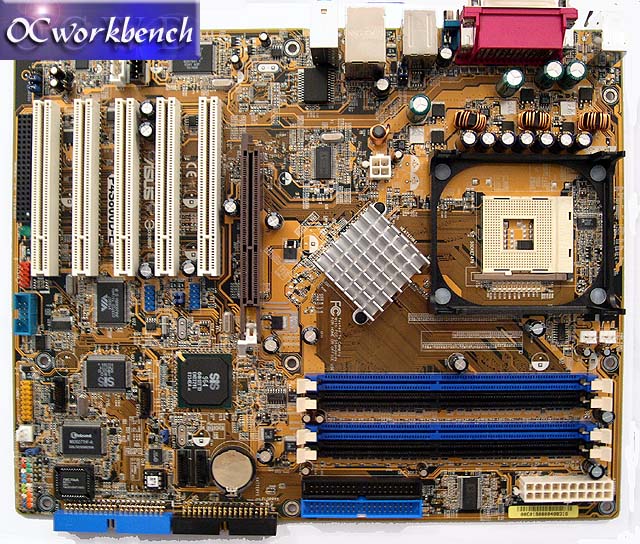

ASUS P4S800D-E is the first board that we reviewed that is based on the SiS 655TX chipset. SiS 655, 655FX is already a well known and accepted low costs chipset that powers the system to the 875P levels. As we can see from the benchmarks itself, the P4S800D-E running at a default of 200.09 has already exceed the 865PE and 875P boards out there. This looks very promising for a board which could definitely costs lower but offers similar performance levels.

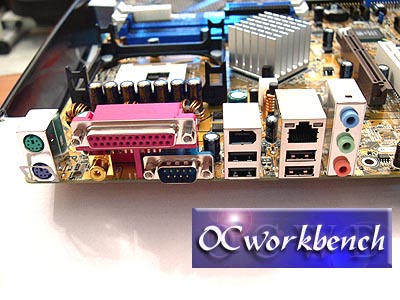

In terms of features, the P4S800D-E is very well equipped. It comes with Gigabit Ethernet, 1394, USB. The best of all is that there are 4 SATA ports on board. 2 SATA ports with RAID 0,1 support is via 964 south bridge while another 2 + 1 IDE channel can be mixed and matched for RAID 0,1,0+1,JBOD. This makes the board one of the most flexible solutions out in the market right now. As discussed before in our SiS 65%FX ref board review, the SiS 655TX also supports the mix-n-match ram sizes. e.g. you can still run in Dual channel DDR mode with 3 sticks, 64M+128M in channel 0 +256M in channel for example. This results in dual channel of 192M x 2 and remaining 64M runs in standard non dual channel mode.

There are overclocking features built in and they include the voltage adjustments for Vcore, Vdimm and Vchipset. The only thing that I find it strange is that the CPU vcore can only be adjusted +0.1v of default FSB is selectable up to 300MHz FSB. There are also various async memory settings which I find that running in Sync gives much better performance than to run in Async modes. overclocking wise, we were able to POST up to 220MHz FSB.

The documentation is pretty straightforward. A separate booklet should be included to teach users how to configure the SATA RAID. The board connectors are colour coded, this adds to the onboard documentation. Packaging wise, it could have included some extra jumpers or maybe a game or so.

Overall, this board with SiS 655TX chipset is definitely a stable and fast performing board for users who wishes to take advantage of the expandability as it has many USB and SATA ports. The flexible DIMM configuration also makes it flexible for you to use back your old modules.
